Electric E-Bike parameters
|
|

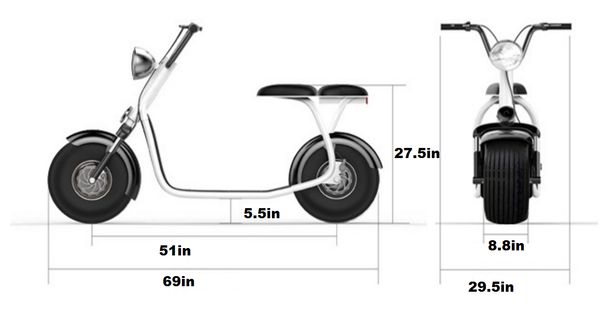

| size |
1800mm*750mm*700mm |
| Wheelbase |
1325mm |
| Minimum Ground Clearance(mm) |
110mm |
| Curb Weight /(kg) |
53kg |
| Maximum Vehicle Mass /(kg) |
200KG |
| Brake(front / rear) |
hydaulic disc+EABS/ hydaulic disc+EABS
|
| Braking distance (dry) |
1.2m(20 km/h ) |
| Braking distance (wet) |
3.1m(20 km/h ) |
| Rim type (front / rear) |
8inch |
| Tire size (front / rear) |
18×9.5inch / 18×9.5inch |
| Tire pressure (front / rear) |
250kPa/250 kPa |
| Electrical parameters |
|
| motor |
800W/1200W brushless PMDC |
| Maximum Torque |
75NM/ 95NM |
| Rated output power |
800W/ 1200W |
| Battery |
Lithium 48V 12Ah/ 72V 12Ah |
| Weight of battery |
3.7 kg / 4.7kg |
| Charging time |
5-6h |
| Controller |
intelligent controller |
| Charger input voltage / frequency |
110-240V/50Hz |
| Max speed |
35km/h / 45km/h |
| Mileages |
60 km/ 100km |
| Gradeability |
18 degree |
| Function |
|
| Two-way intelligent burglar alarm |
Y |
| Keyless start (induction start) |
Y |
| A key for the scooter |
Y |
| Power display |
Y |
| Horn |
Y |
| Front/ rear light |
Y |
| Turning light |
Y |
| Cell phone clock |
Y |
| The motor lock |
Y |
| Mobile phone APP control system |
Y |
