Chilling Coils

  • Sale
  • $ 149.00
  • Regular price $ 249.00


Chilling Coils

1/4" sae JIc flare x 50feet

1/2" sae JIc flare x 50feet

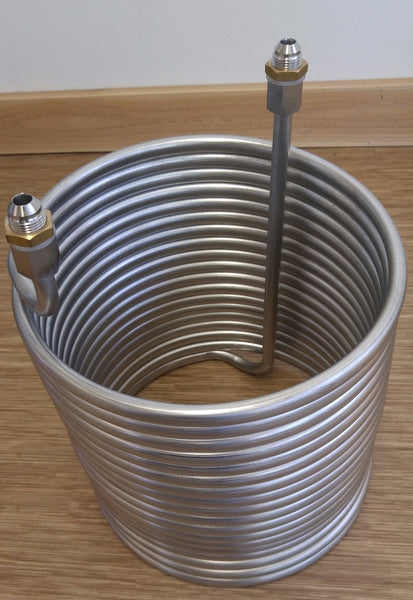

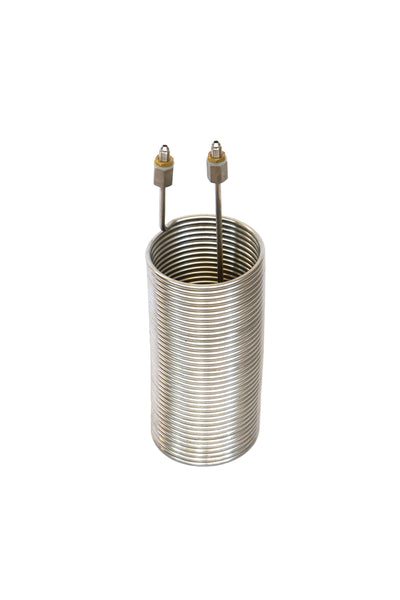

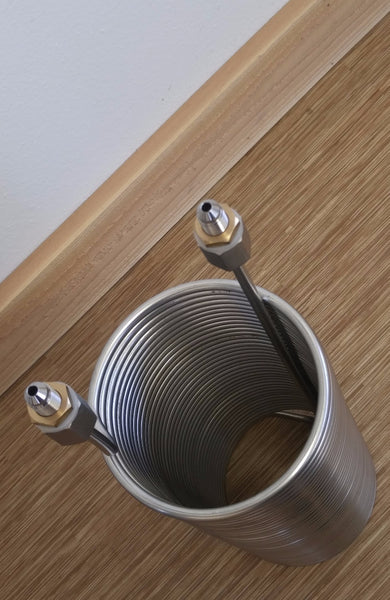

High Grade superior quality stainless steel chilling coils.

- transforms high temperature high pressure vapor refrigerant into low temperature low pressure liquid refrigerant, condensation of refrigerant at this stage dramatically improves recovery speed and efficiency.

-intended for use with all commercially available brands of refrigerant recovery equipment. It is extremely easy to use, saves time and money and provides the missing link in high ambient performance that exists in all commercially available recovery machines on the market today. All that is needed is a 5 gallon bucket and water.

 The effects of high ambient temperatures and elevated tank pressures on the recovery process are well known. As the temperature / pressure of the recovery cylinder increases, the speed of the recovery process decreases until it is finally halted by a high pressure shut down.

1/4" Chilling Coil Product Features

  • Dimensions: 4" D x 12" H
  • Weight: 5lbs
  • 1/4" Male Flare Inlet & Outlet Fittings With Caps
  • Provides Additional Sub-cooling With Any Recovery Unit
  • Maximum Operation Pressure: 550 PSIG
  • Discharge Pressure Gauge: 0 to 600 PSIG
  • Inlet/Outlet Connections: ¼" SAE Male Flare

1/2" Chilling Coil Product Features

  • Dimensions: 10" D x 12" H
  • Weight: 7lbs
  • 1/2" Male Flare Inlet & Outlet Fittings With Caps
  • Provides Additional Sub-cooling With Any Recovery Unit
  • Maximum Operation Pressure: 550 PSIG
  • Discharge Pressure Gauge: 0 to 600 PSIG
  • Inlet/Outlet Connections: 1/2" SAE Male Flare
